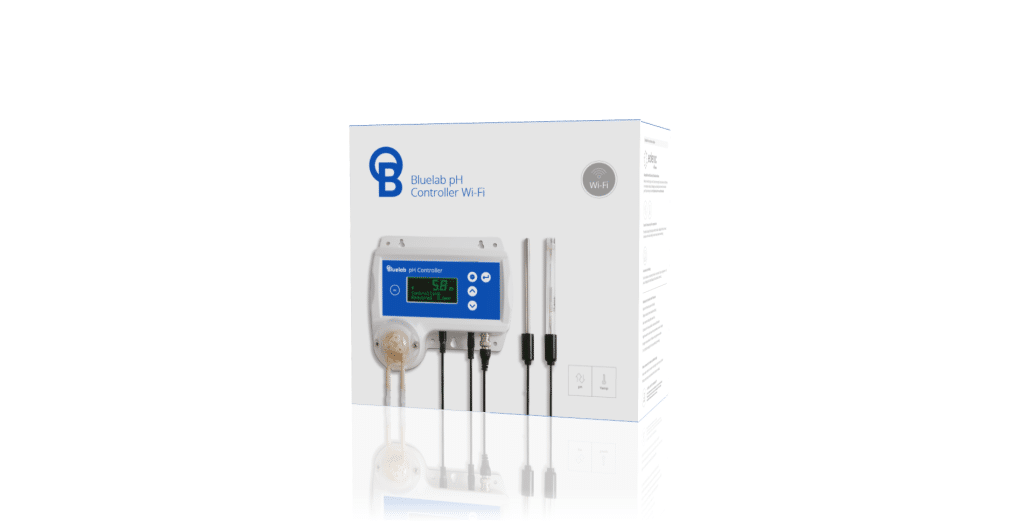

Bluelab pH Controller Wifi (pH Control Only) Kit Price $890.00 + GST

The Bluelab pH Controller Wifi allows for the automated monitoring and dosing of pH corrector into a hydroponic system.

Set and automatically maintain pH levels in reservoirs. Auto-dose pH up or down.

The Bluelab pH Controller Wi-Fi simplifies maintaining perfect pH levels in your hydroponic setup. Its built-in pump delivers precise adjustments within 0.1 pH, and optional Wi-Fi lets you monitor and control everything remotely via the Edenic app. Easy setup with Automatic Temperature Compensation (ATC) ensures accurate readings. Simply set your target pH and let the controller handle the rest, freeing you up for other tasks.

Features:

Connects to Edenic app. Real-time monitoring, control, alerts, and insights directly on your phone.
Built-in Wi-Fi (with option to disable)
Safety lockouts prevent excessive dosing
Auto-resume dosing after power loss
Precision dosing of pH adjuster with the built-in Bluelab peristaltic pump
Controls pH in the up (alkali) or down (acid) direction
High/low alarms to alert you when parameters are out of range
Dosing routine allows for effective mixing before next dose
2-m/6-ft cable lengths for best positioning and viewing
Variable speed pump built in. Maximum 120 ml/min (4.06 fl oz)
Read temperature in °C or °F

pH control is very important in hydroponics. The correct pH is like having the keys to a series of locked cupboards. Each cupboard contains a nutrient element which is essential to healthy plant growth. When the pH is at the correct level e.g 5.8 pH, then all of the cupboards are able to be opened and all of the elements are freely available to the plants. When the pH is too high some of the cupboards remain locked and those elements are unavailable to the crop.

The pH of the root zone should be below 6.2 pH at all times. By dosing the tank at 5.6 – 5.8 pH you can ensure the pH of the root zone will always be below 6.2 pH.

With manual dosing it is very hard to maintain a constant pH.

Incoming fresh water from an automatic ball cock valve and the vigorous feeding of plants will always raise the pH. This can easily push the pH of the nutrient solution beyond 6.2 pH in a short time. With manual dosing there is always a risk of overdosing the tank as many busy growers do not have the time to add small doses of pH corrector manually and then wait the appropriate time for mixing before adding another dose.

The Bluelab pH Controller Wifi overcomes all of those problems and promotes a healthy, high yielding crop which allows the grower to quickly recover the investment cost of the controller.

It provides reliable dosing when required to maintain a constant pH level in a hydroponic system. It is on the job 24 hours a day, 7 days a week and an alarm function and safety lockout alerts the grower to any problems.

The built in peristaltic dosing pump on the controller is also very reliable and accurate.

Simply set your desired pH setpoint and program the “Dose On” and “Dose Off” times to suit the size of your mixing tank. The controller will then take over and tirelessly maintain the correct pH day and night.

Technical Specifications


Control parameter:	pH – user selectable single direction (up or down)
Control range:	0.1 – 13.9 pH
Dose rate:	120 ml per minute
Resolution:	0.1 pH
Accuracy at 25 °C / 77 °F:	±0.1 pH

Calibration:	Two or three point (pH 7.0 and pH 4.0, and/or pH 10.0)
Temperature compensation:	Yes (if temperature probe is in the same solution as pH probe)
Operating environment:	0 – 50 °C, 32 – 122 °F
Power source:	Input: 100-240 Vac, 50-60 Hz, 5 VA, 4 interchangeable plug types (USA, Euro, UK, NZ/AUS) Output: 24VDC 0.4Amp
Screen languages:	English, Deutsch, Spanish, French, Nederlands
